Every home features multiple entryways that people pass through daily without considering the complex engineering behind them. Understanding how these structural systems operate is essential when planning a renovation or performing routine home maintenance. A standard residential entryway consists of far more than a simple swinging panel. It relies on a carefully interconnected network of structural framing, interlocking sealing mechanisms, and precisely engineered hardware.

Familiarizing yourself with the core door anatomy ensures that you can communicate effectively with building contractors during an installation project. Identifying specific problem areas early also prevents minor functional issues from escalating into expensive structural repairs. This comprehensive guide highlights the essential vocabulary and operational mechanics of residential entry systems.

Basic parts of a door explained

A standard entryway relies on three primary categories of design elements to function reliably day after day. These include the framing unit secured to the wall, the swinging or sliding panel itself, and the mechanical hardware that permits movement and security. When one element undergoes structural shifting or suffers physical damage, the entire entryway experiences operational failure. Learning about the foundational parts of a door helps you diagnose drafts, sticking points, or alignment issues accurately.

Homeowners frequently use general terms to describe these installations, but manufacturers analyze entryways through individual mechanical roles. Every single component must integrate seamlessly with the surrounding wall structures to maintain home energy efficiency and property security.

The manufacturing materials heavily influence how these components perform and age over time:

• Solid Wood: Offers traditional aesthetic appeal but requires regular chemical sealing to prevent the natural grain from absorbing rainwater and warping.
• Heavy-Duty Steel: Delivers maximum residential security and physical impact resistance but remains susceptible to surface rust if the protective paint layer suffers a deep scratch.
• Pultruded Fiberglass: Provides superior thermal insulation and mimics natural wood textures while completely resisting moisture rot and seasonal temperature expansion.
• Extruded Vinyl: Creates highly affordable, low-maintenance boundaries that never require seasonal repainting or harsh chemical cleaning.

Understanding these basic material differences prepares you to select the right product for your specific climate.

1. Structural Frame: This fixed boundary system anchors the entryway directly into the rough opening of the building wall.
2. Moving Panel: The solid or glass segment that swings, slides, or folds to allow or restrict physical entry into the room.
3. Operating Hardware: The metal mechanisms responsible for swinging motion, absolute closure, and physical locking security.

Main components of a door frame

The structural boundary surrounding any entry panel provides the essential physical support required to bear the weight of heavy materials over decades of constant operation. A properly square frame ensures that the interior panel opens smoothly without scraping against flooring materials or getting stuck during highly humid seasons. Let us review the primary structural components that establish this rigid perimeter.

Door Jambs

The jambs represent the vertical and top horizontal parts of door structure that form the internal face of the frame. The side jambs house the physical mortise cutouts where heavy hinges attach securely on one side and where the locking strike plate sits on the opposite side. The top horizontal piece is known as the head jamb, which maintains the critical horizontal spacing of the two vertical sides.

Door Sill

The sill forms the bottom horizontal foundation of the frame assembly, resting directly upon the subfloor of the house. This component is heavily reinforced on a front entry system to handle frequent heavy foot traffic and block outdoor water infiltration during severe storms. Many modern aluminum or composite sills feature adjustable heights to maintain a perfectly tight seal as the building naturally settles over time.

Door Stop

The stop consists of a thin, continuous strip of wood or molded material that runs along the inside faces of the jambs. Its primary mechanical function is to prevent the swinging panel from moving past its intended closure position, which would otherwise tear the hinges directly from their mounts. This protruding strip also provides a flat, continuous surface where compression weatherstripping can mount securely.

Door Casing

Casing represents the ornamental trim work installed around the outer perimeter of the frame to hide the raw structural gap between the jambs and the drywall. This trim piece finishes the installation visually while blocking subtle air currents from bypassing the main frame insulation hidden inside the wall cavity.

Parts of a door slab

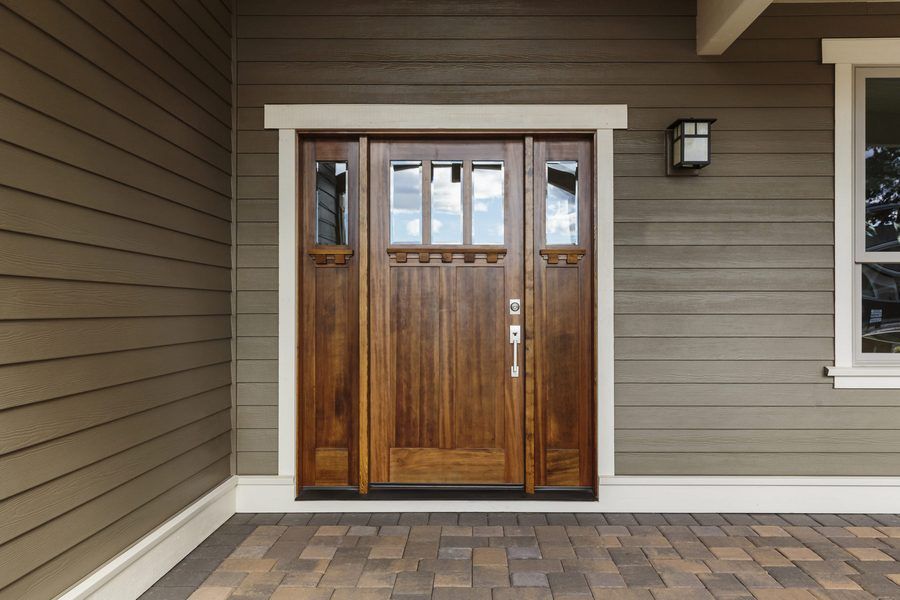

The solid or detailed panel that swings open and closed is technically referred to as the slab in the architectural manufacturing industry. Understanding the individual sections of this panel allows you to appreciate its structural balance and thermal performance. This is particularly true for historical multi panel wood designs or modern insulated steel options. Investigating individual door parts reveals exactly how these large panels achieve long term structural stability.

Stiles

Stiles are the continuous vertical solid sections forming the outer left and right edges of the slab. The lock stile houses the latch and deadbolt mechanism, while the hinge stile anchors the heavy metal screws of the hinge leaves. These vertical components must remain perfectly straight to ensure the panel seals evenly against the perimeter frame from top to bottom.

Rails

Rails represent the horizontal solid sections that interlock with the vertical stiles at various points across the slab. A standard architectural design includes a top rail at the upper boundary, a bottom rail at the ground boundary, and occasional intermediate lock rails across the center. The bottom rail is typically manufactured wider than the others to provide extra structural ballast and low level rigidity against kicking.

Panels

Panels are the larger, thinner floating sections framed tightly between the rigid stiles and rails. These elements can be raised or recessed to create specific architectural patterns that match the style of the house. In modern energy efficient designs, these solid decorative pieces are frequently replaced with insulated composite materials or dense double pane glass packages to allow natural light indoors.

Mullions

A mullion is a vertical structural element that separates adjacent panels situated within the center of the slab. This member adds extra internal rigidity to extremely wide entryways, preventing the center of the panel from bowing under intense wind pressure or seasonal temperature differentials.

Door hardware components & mechanisms

Without high grade mechanical hardware, an entryway remains a stationary piece of material incapable of providing daily convenience or residential security. Examining a professional door parts diagram makes it easy to visualize how these distinct metal mechanisms interact during daily operation. High quality hardware choices ensure decades of quiet movement and prevent forced entry.

1. Hinges: The metal plates with central pins that connect the hinge stile of the slab to the side jamb of the frame, bearing the entire hanging weight of the assembly.
2. Latch Bolt: The spring loaded metal pin that projects from the edge of the slab into the frame strike plate, holding the entryway shut securely without requiring a key.
3. Deadbolt: A heavy duty solid metal security bolt operated by a key or thumb turn that provides maximum resistance against physical forced entry attempts.
4. Strike Plate: The reinforced metal plate screwed into the wood jamb that receives the latch bolt and deadbolt, protecting the wooden frame from splintering under pressure.
5. Escutcheon: The decorative or protective metal backing plate that surrounds the handle or keyhole, covering raw bored holes in the slab material while adding visual appeal.

Exterior door anatomy

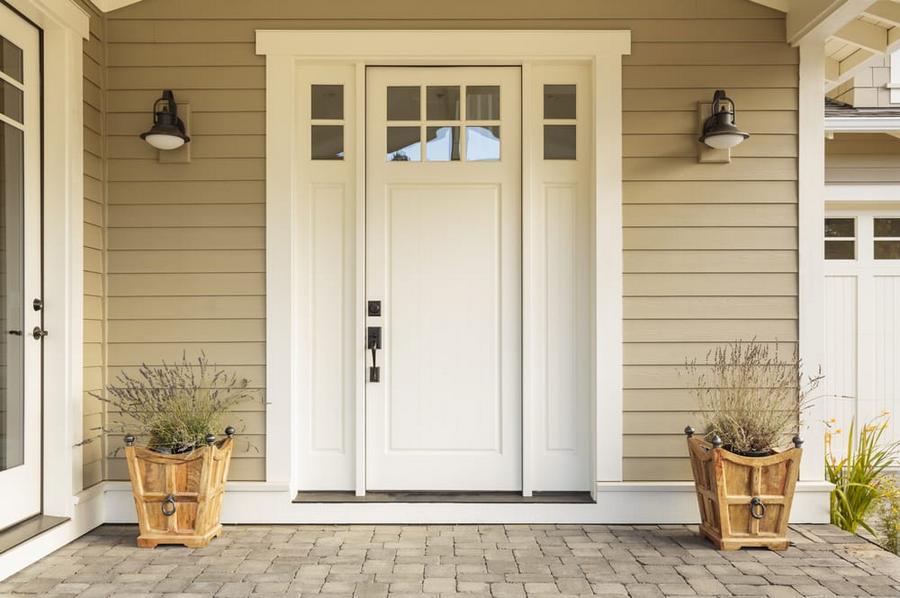

Main entry systems face far harsher physical challenges than simple interior bedroom entryways because they must constantly separate controlled interior air from volatile outdoor elements. Analyzing an exterior entryway reveals several specialized components designed specifically for intense weatherproofing, water diversion, and structural thermal insulation. Every single piece must work in perfect harmony to preserve your home envelope.

A primary differentiator is the heavy presence of thick compression weatherstripping running continuously along the internal stop of the frame. This flexible rubber or vinyl material compresses tightly when the slab latches shut, creating an airtight barrier against wind driven rainstorm moisture and freezing winter drafts.

Additionally, the bottom edge of the swinging panel features a flexible sweep. This multi blade rubber attachment sweeps firmly across the top of the aluminum sill to prevent drafts and crawling insects from passing underneath the entryway into your foyer.

The core of the panel itself is typically filled with dense polyurethane foam insulation rather than being hollow, which prevents outdoor winter cold from radiating directly into your entry hallway. Protective metal flashing must also be installed carefully over the top casing to divert cascading rainwater away from the underlying structural wood framing of your home.

Key components that establish this high-performance protective barrier include:

• Compression Weatherstripping: Durable rubberized gaskets running along the top and side jambs that squeeze tight upon closure to block wind-driven rain and air infiltration.
• Door Sweep: A multi-finned vinyl or rubber strip affixed to the bottom edge of the door slab that seals the variable gap between the moving panel and the threshold.
• Insulated Core: A solid interior injection of high-density polyurethane foam that provides structural stability and blocks thermal transfer across the main panel.
• Drip Cap and Flashing: Formed metal profiles mounted above the exterior trim casing to capture cascading moisture and shed it safely away from the underlying wood framing.
• Thermal Break Threshold: An aluminum sill assembly engineered with a non-conductive vinyl center barrier to isolate outdoor surface temperatures from the interior floorboards.
