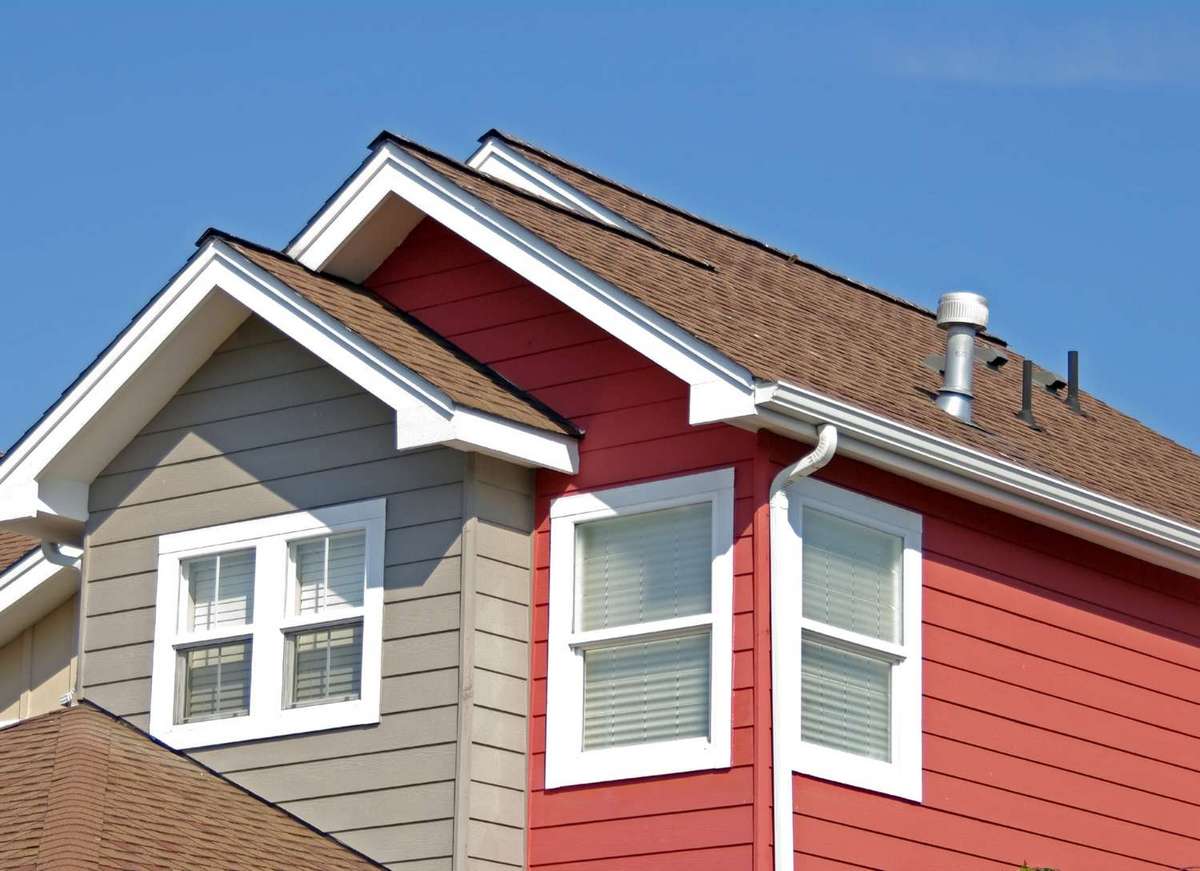

Protecting a home requires defense against harsh environmental elements like Pacific Northwest rain, sun, and snow. A building’s structural envelope relies on specific architectural features to keep water out of wall cavities. A properly designed roofline acts as the primary umbrella for your house. The eaves of a house extend the roof plane past the exterior siding to form a critical barrier.

This horizontal overhang prevents rainwater from running directly down walls. Constant moisture exposure degrades wood siding, penetrates window frames, and causes wall assembly rot. Directing runoff away from the perimeter also protects the foundation from settling, flooding, and cracking. Understanding these structural overhangs helps you make better maintenance and renovation choices to protect your real estate investment.

What is an eave on a house roof?

Residential framing uses complex geometric structures to support loads and handle environmental stress. Rafters and trusses form the internal skeleton resting on load-bearing walls. Instead of stopping flush with the exterior wall plate, these wooden members extend outward to form the roof overhang.

Understanding what is an eave on a house roof clarifies how buildings manage heavy precipitation. This horizontal ledge forces rain and snow to melt away from the building facade. Carpenters enclose these rafter tails to seal the attic against moisture and pests, establishing the visual roofline and gutter mounting points.

Designers set overhang depth based on climate and architectural style. Desert homes feature wide extensions for shade, while high-wind areas use shorter overhangs to limit uplift. Depth, pitch, and materials determine how effectively the system protects the structure.

Purpose and functions of roof eaves

Managing environmental forces dictates the design of every exterior building component. Rain, wind, and solar heat interact directly with your roofing extension every single day. The structural overhang performs multiple simultaneous jobs to preserve the integrity of your exterior envelope. A well engineered extension prevents expensive water damage and drastically reduces your monthly utility bills through passive solar management.

Properly constructed building eaves deliver several measurable benefits to residential properties. These functional advantages include:

• Water diversion: The extension forces cascading rainwater to fall several feet away from the concrete foundation. This keeps the surrounding soil stable and prevents hydrostatic pressure from cracking basement walls.
• Siding preservation: Pushing the drip line away from the house keeps the vertical siding dry during standard rainstorms. This physical barrier stops moisture from stripping exterior paint and prevents mold growth on wood or fiber cement cladding.
• Window protection: The overhang shields exterior window casings from direct rainfall and harsh ultraviolet light. This protection prevents synthetic window seals from drying out and cracking prematurely.
• Passive temperature control: A deep overhang blocks high angle summer sunlight from penetrating interior living spaces. This natural shading keeps the property significantly cooler during August heatwaves.
• Winter solar gain: During the winter, the sun sits at a lower angle in the sky. The overhang geometry allows this low angle sunlight to enter the windows, providing free thermal heating when outside temperatures drop.
• Snow load management: The extended structure holds heavy ice dams away from the warm interior wall cavities. This separation prevents melting snow from leaking directly into the living room ceiling.

Controlling these natural elements extends the lifespan of your exterior paint, siding materials, and custom window installations. Investing in proper structural maintenance guarantees your property remains safe, dry, and highly energy efficient for decades.

Parts of a roof eave

A functional roofline consists of several distinct structural components working together as a unified system. These individual parts enclose the raw framing lumber, channel water safely off the roof edge, provide critical attic ventilation, and support heavy metal gutter systems. Understanding these specific components helps property owners communicate effectively with professional contractors during exterior renovation projects. Every single roof eave requires precise carpentry and high quality materials to function correctly under severe weather conditions.

Rafter tails

The rafter tails are the exposed ends of the sloped roof framing members that extend past the exterior wall to create the overhang in the first place. Every other eave component is essentially built around this structural skeleton. In a closed-eave design, the soffit conceals these framing ends entirely, while in an open-eave or exposed-rafter style, the tails remain visible and are often cut into decorative shapes such as a curved scroll or a simple angled tail. Because these framing members bear the actual structural load of the roof edge, carpenters typically leave them as untreated structural lumber when boxed in, but seal or stain them when exposed to weather.

Fascia boards

The fascia board serves as the primary forward facing eave of a roof component. Carpenters nail this long, straight board directly to the exposed ends of the roof rafters. This horizontal band creates a smooth, finished appearance along the edge of the roof. The fascia carries a tremendous amount of physical weight because it serves as the mounting surface for the entire gutter system. When a gutter fills with heavy rainwater and debris, the fascia must remain perfectly rigid. Contractors typically build this component using thick cedar, composite wood, or aluminum wrapped pine to prevent moisture rot.

Drip edge

The drip edge is a narrow strip of L-shaped or T-shaped metal flashing installed along the lowest edge of the roof deck, tucked beneath the shingles or underlayment and positioned directly above the fascia board. Understanding its true architectural meaning clarifies its vital role: its sole job is to direct water off the roof surface and into the gutter below rather than allowing it to creep backward under the shingles or run down behind the fascia. Without a properly installed drip edge, rainwater can wick into the roof decking and fascia over time, leading to rot and costly hidden water damage.

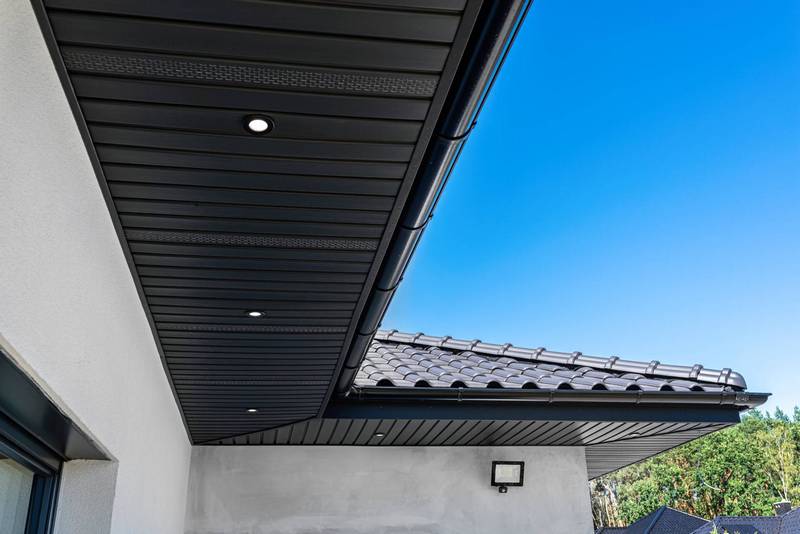

Soffit panels

The soffit is the specific material that covers the underside of the overhang. If you stand against your exterior wall and look straight up, you are looking directly at the soffit. This component bridges the horizontal gap between the back of the fascia board and the vertical house wall. Soffit panels play a mandatory role in whole home ventilation. Installers use perforated vinyl or vented aluminum panels to allow fresh outside air to flow freely into the attic space. This continuous air intake pushes superheated summer air out through the top ridge vents, keeping the attic dry and preventing winter ice dams.

Frieze board and molding

The frieze board is a decorative and functional trim piece installed flat against the exterior wall. It sits directly immediately below the soffit panel. This horizontal trim covers the messy transition joint where the vertical siding meets the horizontal soffit. The frieze board prevents wind driven rain and determined insects from finding a path behind the siding panels. In upscale architectural designs, carpenters often enhance the frieze board with complex dental molding or decorative corbels to add visual gravity to the roofline transition.

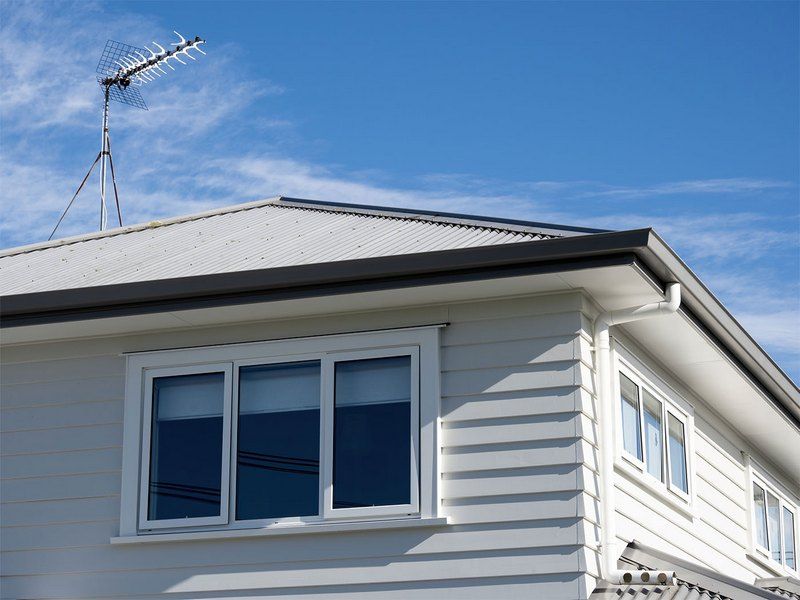

Types of eaves

Architectural history and regional climate demands have produced several distinct overhang designs. Building designers select a specific style based on the visual requirements of the property and the severity of local weather patterns. A sleek modern house requires an entirely different roofline treatment than a traditional Victorian property.

Choosing the correct configuration impacts both the visual curb appeal and the long term maintenance requirements of the building. We can categorize overhanging eaves into four distinct structural families.

Open overhangs

This traditional style leaves the underside of the roof rafters completely exposed to the elements. You can clearly see the individual wooden tails extending past the exterior wall. This design dominates rustic cabins and classic Craftsman architecture. Open overhangs require intense maintenance because the exposed wood needs frequent painting to prevent organic rot.

Closed overhangs

This highly popular modern design or roofing eaves utilizes a flat soffit panel to enclose the rafter tails completely. The soffit creates a clean 90 degree angle with the exterior wall. Closing the structure protects the raw framing lumber from moisture and nesting birds. This system requires very little maintenance and provides excellent locations for hidden intake ventilation.

Boxed overhangs

Boxed designs take the closed concept a step further by encasing the rafters in a bulky, decorative frame. The structure creates a heavy, substantial border around the top of the house. Traditional Colonial and Georgian homes frequently feature boxed profiles decorated with intricate crown molding.

Abbreviated overhangs

Some architectural styles intentionally eliminate the roof extension entirely. The roofline stops completely flush with the exterior vertical wall. While this provides a striking modern aesthetic, it offers zero protection against cascading rainwater, unlike other types of eaves. Properties with abbreviated rooflines require massive investment in premium waterproof cladding and flawless window flashing to prevent moisture intrusion.

Roofing eaves installation and maintenance

Executing a flawless exterior installation requires careful attention to moisture management, ventilation, and carpentry. The installation procedure should include these steps:

1. Inspect the roofline and surrounding structures for rot, water damage, and deteriorated framing before beginning work.
2. Replace any compromised wood and repair structural damage before installing new vinyl or aluminum components.
3. Secure framing materials correctly and maintain proper ventilation ratios so the attic can release humid air without allowing heavy winter rain to enter.
4. Confirm the exact definition of project scope with the contractor to ensure all necessary repairs are completed before the exterior components are installed.

Regular maintenance helps preserve these structural elements and prevent costly damage. Follow these maintenance procedures during seasonal inspections:

• Inspect the roofline twice a year, ideally in spring and autumn, for peeling paint, sagging fascia boards, loose components, damaged soffits, and clogged ventilation panels.
• Remove pine needles, dead leaves, and other organic debris from gutters and roofline areas.
• Clean the gutters thoroughly every spring and autumn to prevent debris from retaining rainwater and placing excessive weight on the fascia boards.
• Check gutter fasteners and drainage paths to ensure water flows away from the roofline rather than spilling backward into the soffit space.
• Inspect the wood along the roofline for soft or spongy areas that indicate moisture damage or rot.
• Replace compromised materials and correct underlying drainage or ventilation problems as soon as they are discovered.

Following these procedures helps prevent water damage from spreading into the roof structure, attic, or interior walls. If you notice persistent moisture, visible mold, significant wood deterioration, or structural damage, contact a local exterior specialist for professional repairs.
