Double-hung windows remain the most common style in residential homes across the country. They combine classic appearance with dual-sash ventilation and easy maintenance.

Understanding how each section connects simplifies maintenance and helps you diagnose drafts or operating issues. This guide covers every structural element, mechanical balance, and piece of hardware inside the unit.

What is a double hung window?

A double-hung unit features 2 independent sashes that slide vertically within a single outer frame. Both the top sash and the bottom sash move up and down along individual side tracks.

This dual movement separates the design from a single-hung model, where only the lower sash operates while the upper sash stays fixed in place. Homeowners can lower the top sash to let warm air escape near the ceiling while raising the bottom sash to pull fresh air into the room.

Modern units also include tilt-in hardware on both sashes. This allows you to clean exterior glass surfaces from inside your home without ladders. Knowing the complete double hung window anatomy helps you pinpoint mechanical problems when a sash refuses to stay open or locks fail to engage.

Each piece inside the assembly serves a distinct mechanical or thermal purpose. From exterior frame extrusions to internal counterbalances, every item must fit precise tolerances to stop air leaks and water penetration.

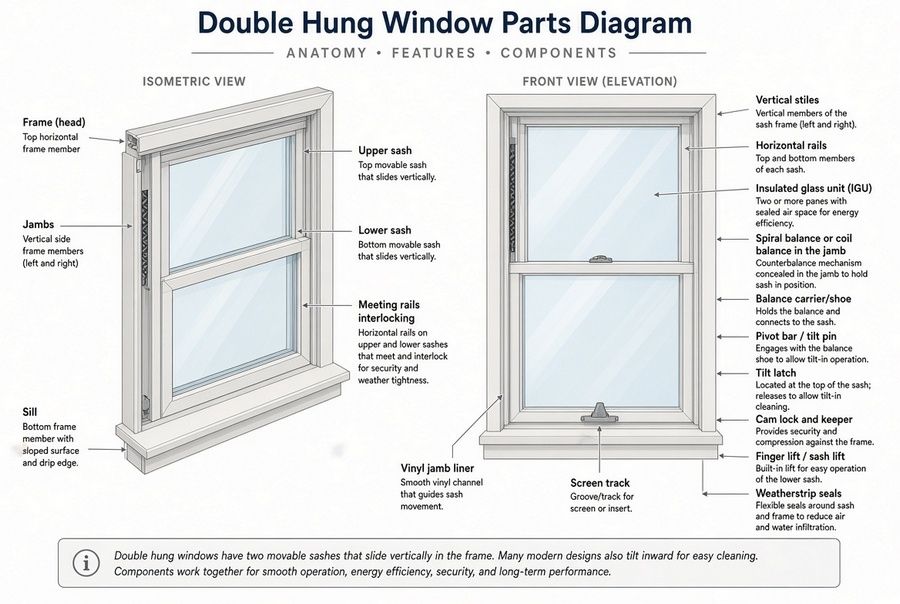

Double hung window parts diagram

A mental blueprint helps you visualize where individual pieces fit inside the wall opening. Every unit divides into 3 core groups:

• the stationary perimeter frame,
• the movable sashes,
• the operating hardware hidden inside the side jambs.

Reviewing a detailed double hung window parts diagram clarifies how stationary frames support movable components while keeping out harsh weather.

The stationary frame fastens directly into the rough wall opening of the building. The upper sash rests in the outer track, while the lower sash operates in the inner track. Concealed balances connect to the sashes through pivot bars, allowing smooth vertical travel without heavy lifting.

Parts of a double hung window

A residential window consists of dozens of precision parts working together. Identifying each element by its correct trade name speeds up hardware procurement and simplifies repair jobs.

Window Frame

The frame forms the structural perimeter that mounts into the wall studs. It holds the sashes and seals the opening against air infiltration.

• Head Jamb: The horizontal member forming the top of the outer frame. It contains channels that receive the upper sash when closed.
• Side Jambs: The vertical legs of the frame located on the left and right sides. They house the balance tracks, jamb liners, and sash stops.
• Sill: The bottom horizontal member of the frame. It features a downward slope of at least 5° to shed rainwater away from the interior wall.
• Stool: The decorative interior trim board commonly called the window sill, resting flat on the inside wall.
• Apron: The flat trim board fastened directly below the stool against the drywall.

Window Sashes

The sash is the complete framed unit that holds the glass panes. A double-hung system includes 2 sashes that slide past each other along vertical tracks.

The upper sash sits in the exterior track. It drops down to exhaust warm room air through the top opening.The lower sash sits in the interior track and lifts upward for room ventilation. Both sashes contain weatherstripping along their contact edges to stop wind drafts.

Rails and Stiles

Each sash consists of 4 main perimeter pieces joined at 90° corners. These structural rails and stiles serve as essential double hung window components that keep the sash square during operation.

• Top Rail: The top horizontal member of the sash frame.
• Bottom Rail: The lower horizontal member of the sash frame, often shaped to rest tight against the sill.
• Stiles: The 2 vertical side members of the sash frame that house the tilt latches and pivot pins.
• Meeting Rails (Check Rails): The horizontal rails that meet in the middle of the window when closed. The bottom rail of the upper sash and the top rail of the lower sash interlock here with a continuous weather seal.

Sash Balances

Hidden counterbalances assist in lifting heavy sashes and hold them open.

• Coil spring (constant force): Uses stainless steel ribbons in cassettes that store energy when unrolled.
• Spiral: Employs an internal spiral rod inside a metal tube, manually tensioned to set the correct lifting force.
• Block and tackle: Combines nylon cords, pulleys, and an extension spring inside the side jamb pocket for a 4:1 mechanical advantage.

Balance Shoes and Pivot Bars

The balance connects to the sash via two coordinating pieces:

• Pivot bar: A metal pin fastened to the sash’s bottom corner that extends into the jamb track.
• Balance shoe: A nylon or zinc block attached to the balance spring. The pivot bar inserts into its center cam. Tilting the sash 90° rotates the cam, locking the shoe into the track to prevent the spring from snapping upward.

Tilt Latches

Located on the top rail corners, tilt latches hold the sash upright in the jamb tracks. Internal springs push beveled bolts into the side tracks. Sliding the buttons inward retracts these bolts, allowing the sash to tilt inward for convenient cleaning.

Sash Locks and Keepers

Mounted on the central meeting rails, this assembly provides security and weather sealing. The lock sits on the lower sash, while the keeper fastens to the upper sash. Engaging the handle draws them together, compressing the central weatherstripping to block drafts.

Glass and Glazing Components

Energy-efficient windows use insulated glass units (IGUs) to manage thermal transfer. IGUs feature two or three panes separated by a perimeter spacer, with a ½” to ¾” gap filled with argon or krypton gas. Low-emissivity (Low-E) coatings reflect radiant heat. Extruded vinyl glazing beads and silicone adhesive secure the sealed unit within the frame.

Muntins and Grids

Muntins are decorative bars dividing glass into smaller panes (lites).

• Grids between glass: Sit inside the sealed airspace, leaving exterior surfaces smooth for easy cleaning.
• Simulated divided lites: Adhere directly to the interior and exterior glass faces with high-bond tape.
• True divided lites: Use individual glass panes glazed into separate framing sections.

Weatherstripping and Sweep Seals

High-grade weather seals remain critical parts of a double hung window for stopping exterior drafts and moisture along the frame perimeter.

Dense wool pile seals line the jamb channels to reduce friction while blocking drafts around the vertical stiles. Fin seals feature a rigid plastic barrier running down the center of the pile to halt high-pressure winds.

Window Stops and Parting Beads

Stops are thin physical barriers that keep the sashes aligned within their designated tracks inside the jambs.

• Interior Stop: A vertical trim piece on the inner edge of the jamb that prevents the lower sash from falling inward into the living space.
• Parting Bead (Parting Stop): A narrow vertical strip located between the inner and outer tracks. It keeps the upper and lower sashes separated so they do not rub together when operating.
• Exterior Stop (Blind Stop): A permanent flange on the exterior edge of the frame that stops the upper sash from pushing outward into the yard.

Weep Holes and Drainage Channels

Water management protects the underlying wood framing from rot and mold growth. Even tight weatherstripping allows small amounts of wind-driven rain past the outer sash. The sill features internal drainage channels beneath the lower sash track. Rain that hits the glass drains into this lower basin. Exterior weep holes on the front face of the sill let this trapped water exit onto the exterior siding. Small plastic weep baffles cover these openings, allowing water out while stopping insects and drafts from entering.

How does a double hung window work?

Operating a double-hung window relies on mechanical equilibrium between gravity and spring tension. Understanding this interaction makes routine operation and minor adjustments simple.

So, how does a double hung window work when both heavy sashes seem to float effortlessly inside the frame tracks?

The process follows a reliable mechanical sequence:

1. Unlocking the Cam: Turning the lock handle releases the cam from the keeper, freeing the meeting rails from their locked alignment.
2. Vertical Travel: Moving the lower sash up or the upper sash down causes the sash pivot bars to pull the balance shoes along the jamb tracks.
3. Counterbalance Action: The internal springs inside the side balances uncoil or extend, counteracting the 15 lb to 35 lb weight of the insulated glass unit.
4. Friction Stability: The balance springs provide lifting force matched to the weight of the sash, holding the window steady at any desired opening height.
5. Tilting for Maintenance: Retracting the spring-loaded tilt latches frees the top of the sash from the track, letting the sash pivot into the room on its lower pivot pins.
6. Brake Engagement: Tilting the sash past 45° turns the cam inside the balance shoe, wedging the shoe against the jamb track to prevent the balance from retracting upward.

Common double hung window parts that need replacement

Operating hardware experiences mechanical friction, exposure to ultraviolet rays, and temperature swings. Over time, plastic latches turn brittle and metal springs lose tension.

Sourcing correct double hung window parts requires knowing the exact part dimensions, profile styles, and manufacturer stamping marks.

Watch for wear on these critical items:

• Sash Balances: Broken springs or snapped balance cords cause sashes to feel heavy or drop shut unexpectedly. Replace balances in pairs on both sides of the sash to maintain level operation.
• Tilt Latches: Plastic latch tabs crack after repeated sun exposure. A broken latch allows the top of the sash to flop inward without warning.
• Pivot Bars: Die-cast zinc pivot bars snap if someone forces the sash closed while it sits slightly crooked in the frame.
• Sash Locks: Forcing an unaligned lock strips the internal cam or snaps the keeper off the meeting rail.
• Weatherstripping: Flattened, torn, or missing wool pile allows drafts and street noise to enter the room.
• Balance Shoes: Cracked nylon housings prevent the pivot pin from locking, causing the shoe to shoot to the top of the frame.
