Water intrusion causes severe structural damage to homes and commercial buildings. Moisture seeping through exterior wall penetrations rots framing studs, degrades insulation, and encourages mold growth. A continuous weather barrier directs wind-driven rain away from wall openings and down the exterior drainage plane. Proper exterior detailing around wall penetrations preserves the integrity of the building envelope for decades.
What is window flashing?
Exterior wall claddings shed the majority of surface rainwater during heavy storms. However, siding and trim systems rarely act as completely waterproof barriers. Builders and homeowners ask what is window flashing when planning new construction or replacement projects.
It describes thin, impervious material assemblies installed around frame perimeters to divert liquid water outward. These barrier components route moisture away from unsealed wall cavities toward the exterior siding plane. Modern building codes require these integrated barrier layers on all exterior rough openings.
Without this protective drainage plane, water pools on flat horizontal framing surfaces inside wall cavities. Concealed leaks rot wood framing and compromise indoor air quality long before showing visible interior drywall stains.
Types of window flashing
Wall assemblies require specific barrier materials to prevent moisture infiltration under extreme pressures, varying by climate and window frame materials. Manufacturers produce these barriers in rigid, flexible, and liquid configurations. When applying modern flashing on windows, membrane chemistry must always match the surrounding weather-resistive barrier.
Common barrier categories include:
- Rigid metal flashing: Pre-bent aluminum, steel, or copper Z-profiles that shed high volumes of water above window heads.
- Self-adhering membrane tape: Flexible peel-and-stick rolls that seal rough framing contours and 3D corners.
- Liquid-applied membrane: Brushed or troweled compounds that form seamless seals over rough openings.
- Pre-formed sill pans: Molded plastic trays with integrated end dams that catch and drain sill leaks to the exterior.
- Combining rigid head caps with flexible self-adhering tapes delivers dependable, long-term moisture defense for exterior wall assemblies.
Materials and tools needed for window flashing
Successful installation requires gathering compatible supplies before opening exterior wall cavities. Mixing incompatible adhesives and sealants degrades chemical bonds and creates pathway leaks over time. High-performance window tape flashing forms the core component of modern rough opening waterproofing systems.
Builders must confirm that the selected tape adheres securely in local ambient installation temperatures. Specialized hand tools ensure clean cuts, tight corner seals, and complete adhesive contact against wood substrates.
Essential tools and materials include:
- Self-adhering flashing tape in 4″, 6″, or 9″ widths
- Rigid metal drip cap sized to the window frame width plus ½” overhang
- Class 25 or higher elastomeric sealant compatible with the tape adhesive
- High-density J-roller or hard hand roller for full adhesive activation
- Utility knife with fresh blades for clean, square cuts
- Measuring tape and builder square
- Level for checking framing plumb and sill pitch
- Mechanical hammer tacker or staple gun for housewrap integration
Organizing these tools beforehand accelerates installation work and prevents errors during critical sealing steps. Clean sheathing surfaces allow adhesive compounds to achieve full surface contact without primer in moderate weather.
How to install window flashing
Correct installation follows gravity drainage rules where higher layers overlap lower layers. Builders describe this sequential layering technique as the shingle-lap or weatherboard method. Learning how to install window flashing ensures that moisture flows harmlessly downward across every overlapping joint.
Reverse laps trap downward-flowing water behind membranes and channel moisture straight into wall cavities. The following step-by-step sequence outlines professional installation for flanged window units.
Step 1: Prepare the rough opening and check the sill
Inspect the structural framing members for plumb, level, and square alignment. The rough opening dimensions must exceed the exterior window unit dimensions by ½” to ¾” in width and height.
Cut back existing housewrap at 45° angles above the head jamb to create a temporary flap for head flashing integration. Fasten the temporary top flap out of the way using low-tack tape.
Fasten a 5° sloped wood sill wedge or beveled siding strip to the bottom sill plate. A beveled sill slopes downward toward the exterior to ensure that entering water drains outward rather than pooling.
Step 2: Form the sloped sill pan with flashing tape
Cut a piece of flexible self-adhering tape 12″ longer than the rough opening sill width. Center the tape on the sloped sill and press it firmly into the interior-to-sill corner.
Run the tape 6″ up each vertical rough jamb to form protective corner end dams. Fold the front apron of the tape down over the face of the exterior housewrap below the sill by at least 2″.
Cut corner relief patches or apply pre-formed corner pieces to eliminate pinhole openings at inside corners. Firmly press the tape into the framing with a hard J-roller to eliminate air pockets and activate the pressure-sensitive adhesive.

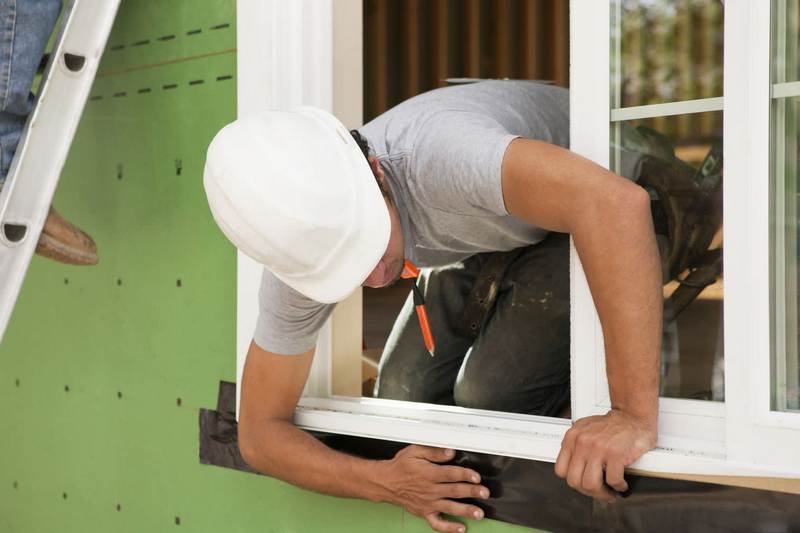

Step 3: Set and secure the window unit
Apply a continuous ⅜” bead of exterior grade sealant along the interior face of the top and side window flanges. Never apply sealant along the bottom sill flange of the window unit. Leaving the bottom flange unsealed is essential when builders learn how to flash windows with drainage openings.
An unsealed bottom flange allows water that reaches the sill pan to escape harmlessly to the building exterior. Set the window into the rough opening, resting the frame evenly on leveling shims placed along the sill.
Fasten the window unit through the pre-punched flange holes using corrosion-resistant fasteners, checking diagonal measurements for squareness. Premium vinyl and aluminum units, such as those manufactured by Columbia Windows & Doors, maintain tight tolerances when secured squarely within the rough opening.
Step 4: Apply the jamb flashing
Cut 2 pieces of 4″ or 6″ wide flashing tape to cover the vertical side flanges. Size each side strip so it extends 2″ above the top header flange and 2″ below the bottom sill flashing apron.
Align the side tape strips directly over the nailing flange, adhering half the width to the flange and half to the adjacent wall sheathing. Smooth each side strip downward with a J-roller to form an airtight and watertight bond.
Overlapping the side tape over the bottom sill apron maintains the positive shingle-lap drainage plane. Water running down the jamb flashing sheds over the sill apron rather than slipping behind it.
Step 5: Install the head flashing and metal drip cap
Position a rigid metal drip cap directly over the top window flange. The metal drip cap must extend ¼” past each vertical side jamb to direct water away from the vertical seams.
Apply a piece of flashing tape across the top mounting leg of the metal drip cap. Extend the head tape at least 2″ past the outer edges of the vertical jamb flashing tapes on both sides.
Roll the head tape firmly against the rigid metal leg and the exposed exterior wall sheathing to complete the upper window flashing assembly. This seals the joint between the metal flashing and the building substrate.
Step 6: Seal the weather-resistive barrier
Release the temporary flap of housewrap that was pinned above the rough opening. Fold the housewrap down over the newly installed head flashing tape.
Apply approved seam tape along the 45° diagonal cuts and across the horizontal seam. This final layer ensures that water running down the housewrap sheds directly onto the drip cap and out of the wall assembly.
From the interior, seal the perimeter gap between the window frame and framing studs with low-expansion polyurethane foam. Low-expansion foam seals against air leakage without bowing the window jambs.
How to flash a window with flashing tape
Self-adhering flashing tapes have largely replaced traditional building paper and metal step flashing in modern construction. These adhesive rolls provide continuous air and moisture barriers when installed on sound substrates. Performing a dependable window flashing tape installation requires careful attention to ambient temperature and surface cleanliness.
Acrylic flashing tapes bond effectively in temperatures down to 0°F without requiring external heat or specialized primers. Butyl tapes offer excellent flexibility and self-healing nail puncture resistance but require installation temperatures above 40°F.
Follow these steps for applying tape membranes:
- Clean the substrate thoroughly to remove sawdust, dirt, frost, and chemical residue before peeling the release liner.
- Cut tape sections with a sharp utility knife rather than tearing the membrane to maintain clean, square edges.
- Peel the backing paper gradually while aligning the edge to prevent premature adhesion and wrinkles.
- Roll every square inch of applied tape using a firm J-roller to activate the chemical bond with the substrate.
- Inspect all lap seams to verify minimum 2″ overlaps in the direction of downward water flow.
Pressure activation represents the most critical yet frequently skipped phase of tape installation. Unrolled tape relies only on superficial surface tack and will detach under cyclic seasonal expansion and contraction.
Common mistakes when taping windows
Improper flashing detailing accounts for the majority of residential warranty claims related to moisture intrusion. Small procedural errors during the initial installation lead to extensive rot hidden behind exterior claddings. Avoiding frequent oversights during taping windows protects structural framing components from costly decay.
Identifying these common installation traps helps contractors and homeowners achieve leak-free installations on every project.
Frequent installation mistakes include:
- Caulking the bottom mounting flange: Sealing the sill flange traps moisture inside the wall cavity and floods interior framing.
- Creating reverse shingle laps: Placing upper tape layers behind lower tape layers channels downward drainage directly behind the barrier.
- Skipping pressure rolling: Relying on hand smoothing leaves microscopic air tunnels that detach under thermal cycling.
- Using incompatible caulk: Standard silicone sealants can dissolve asphalt-based adhesive tapes and compromise the water seal.
- Stretching tape around inside corners: Tightly stretched tape pulls away from 90° corners over time, creating water channels.
Paying close attention to drainage mechanics prevents premature window and wall assembly failure. High-performance replacement units from Columbia Windows & Doors deliver optimal energy efficiency when supported by proper rough opening flashing.
