Upgrading your entryway with a glass wall brings abundant sunlight and connects your living space to the outdoors. This structural upgrade requires exact technical precision. Knowing the standard sliding door size prevents expensive framing mistakes. Correct measurements ensure structural integrity, lasting energy efficiency, and secure locking hardware.
During an exterior renovation, carefully account for rough openings, header spans, and floor clearances. Ordering a unit slightly too large forces contractors to rebuild the wall. Ordering one too small requires excessive shimming, which ruins the weather seal and places destructive mechanical stress on the tracks. Our guide explains industry baselines, panel configurations, and professional measuring techniques to ensure your new unit fits perfectly.
Most common standard sliding glass door dimensions
Residential building codes dictate uniform exterior entry dimensions across the construction industry. The standard vertical measurement is 80″, which aligns perfectly with interior doors for a cohesive visual line. While luxury homes occasionally use 96″ panels, the 80″ baseline remains the industry standard.
How wide is a sliding glass door? Manufacturers universally produce dual panel systems in three common widths:
- 60″
- 72″ (the definitive 6 foot industry baseline)
- 96″
A 72″ standard sliding glass door size provides an ideal balance of outdoor visibility, natural ventilation, and manageable wall framing. This size utilizes two 36″ insulated panels that remain light enough to operate smoothly with one hand while leaving ample wall space for furniture. Expanding beyond this footprint drastically increases the physical weight. Larger glass units require heavily upgraded stainless steel bearing systems and reinforced extrusions to guarantee a smooth glide over the bottom track.
Sliding door dimensions by configuration
Every home features unique architectural layouts that demand specific exterior entry solutions. The configuration you choose directly impacts your daily traffic flow, your natural ventilation, and your structural framing requirements. Understanding the exact physical footprint of each layout helps you select the perfect system for your specific remodeling goals.
2-panel sliding glass door dimensions
The traditional two-panel configuration dominates the Pacific Northwest. Featuring one fixed pane and one gliding sash, the 72″ sliding door width remains the most popular choice. Contractors prefer this six-foot footprint because it easily fits standard residential load-bearing walls without requiring structural engineers or expensive steel beams.
This dual-panel system also provides excellent energy efficiency. A single interlocking vertical weatherstrip limits moving parts, successfully preventing cold air and driving rain from entering your home. For enhanced security, these modern units include multi-point locking hardware that firmly secures the active panel against forced entry.
3-panel sliding door dimensions
Expanding your exterior view requires a three-panel system, usually measuring 108″ or 144″ wide. Common configurations include a center operable sash flanked by two fixed panels, or an end panel that slides over a fixed center panel. These wide units add substantial weight to your exterior wall framing. A contractor must install a heavy structural header above the opening. If it sags over time, the frame will pinch the track and bind the doors.

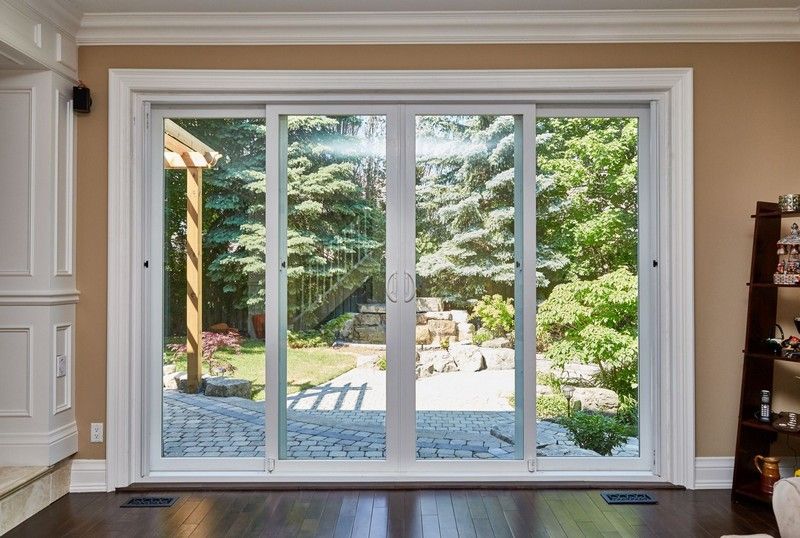

4-panel and multi-slide door dimensions
Luxury properties and custom designs frequently utilize massive four-panel, center-opening patio door systems. Finding the correct standard patio door size for these spectacular installations requires a 12- to 16-foot horizontal rough opening. These premium units feature two fixed outer panels and two active interior panels that pull apart from the center, seamlessly merging indoor and outdoor entertainment spaces.
These massive horizontal systems demand flawless installation and a perfectly level subfloor. Because the active panels lock together in the dead center of the track, any structural unevenness will permanently misalign the locking mechanisms. Smooth operation requires heavy-duty tandem rollers, while reinforced aluminum mullions hidden inside the vinyl extrusions prevent the tall profiles from warping under intense summer sun or bending during winter windstorms.
Pocket and telescoping sliding door sizes
Modern home designs often incorporate specialized pocket or telescoping track systems. Telescoping configurations feature multiple floor tracks that allow glass panels to stack behind one another on a single side. Pocket systems allow the active panels to slide completely into a hidden wall cavity, entirely removing the barrier between indoor and outdoor spaces.
The average pocket installation requires double the structural framing space of the visible opening; a 72″ walking path requires a 144″ cavity inside the wall. Building these systems requires meticulous weatherproofing, heavy-duty flashing, and internal track drainage. Preventing rainwater from penetrating the hidden cavity is critical to avoid structural wood rot or mold inside the walls. While these systems offer premium aesthetic appeal, they require a substantial financial investment.

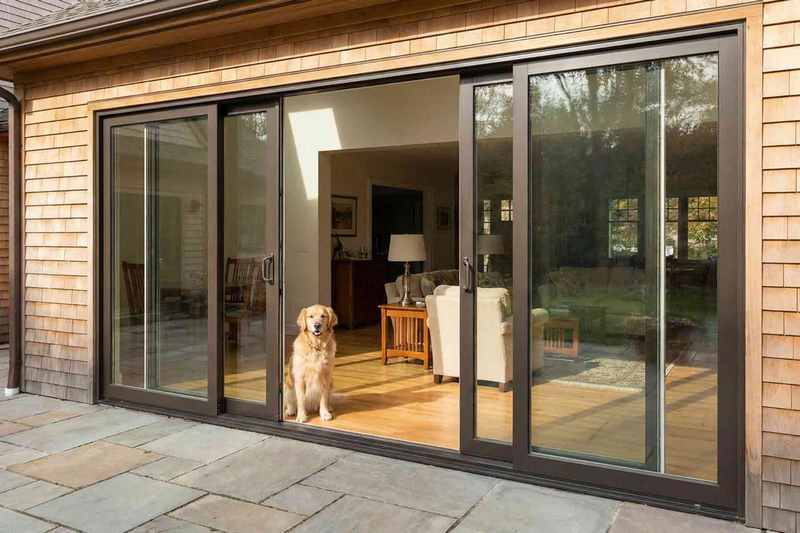

How to take accurate sliding glass door measurements
Recording exact numbers determines whether your new installation keeps out winter drafts or leaks during rainstorms. Capturing precise sliding door dimensions requires measuring directly from the bare structural framing rather than decorative interior trim, which constantly hides the true size of the hole.
Understand the technical difference between a rough opening and a net frame size. The rough opening is the bare wood hole created by framing carpenters. The net frame size is the exact physical outside measurement of the new manufactured vinyl unit. Your final net frame size must always be exactly ½″ smaller than the rough opening. This crucial gap allows installers enough physical room to perfectly plumb, level, and square the unit using wooden shims. Without it, the frame will sit crooked, causing locking mechanisms to fail entirely.
How to measure sliding door width
Determining the correct width requires accessing the bare structural wood framing on the sides of your entryway. You absolutely cannot rely on the visible interior baseboards or the exterior siding cuts to provide an accurate framing number.
- Carefully pry off the interior decorative casing using a thin metal flat bar to expose the vertical wooden jack studs hidden behind the drywall.
- Place your rigid measuring tape horizontally straight across the entire open space.
- Record the exact distance from the inside face of the left wooden jack stud directly to the inside face of the right wooden jack stud.
- Take this exact same horizontal measurement at the top track, the middle lock point, and the bottom floor track to check for severe structural bowing in the walls.
- Always use the absolute smallest recorded number as your final horizontal framing specification for the factory order.
- Verify the opening is perfectly square by measuring diagonally from the top left corner to the bottom right corner, and then compare it to the opposite diagonal measurement.
If your wall studs are severely bowed or completely out of plumb, using the largest recorded measurement will result in a rigid vinyl frame that gets physically stuck halfway into the opening during the installation process, ruining the project timeline.

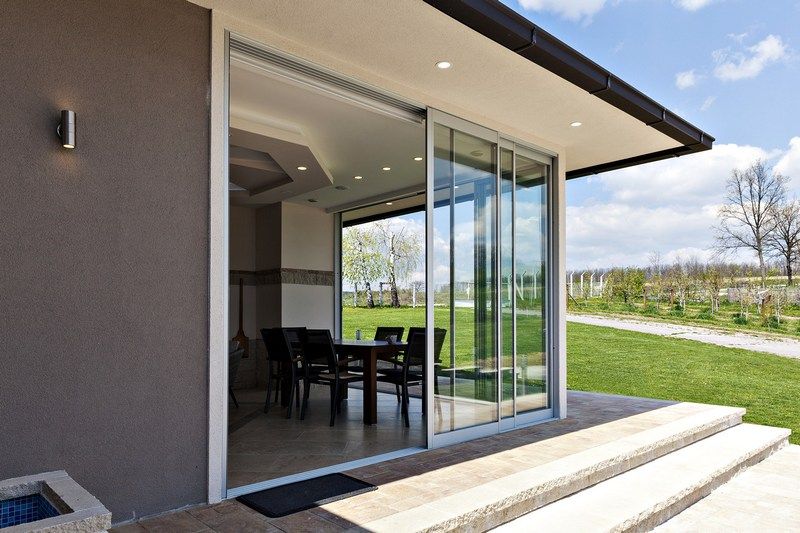

How to measure sliding door height
To accurately figure out how tall is a sliding glass door, carefully evaluate the vertical rough opening stretching from the floor all the way up to the structural header. This critical vertical number dictates proper clearance for both your interior flooring transitions and your exterior patio decking heights.
- Start your metal tape measure squarely at the bare concrete slab or the bare structural OSB wood subfloor.
- Extend the metal tape straight upward until it firmly touches the bottom edge of the solid structural wood header above the frame.
- Measure this vertical distance on the far left side, the exact center point, and the far right side of the wide opening.
- Select the absolute smallest height recorded to ensure the tall new frame fits perfectly without binding tightly against the ceiling framing overhead.
Also account for the total thickness of your finished interior flooring. If you plan to install thick solid hardwood floors or plush dense carpeting right up to the entryway, the bottom sill must sit high enough to allow the active panel to swing or slide without dragging aggressively across your expensive new flooring materials and destroying the finish.
Measuring existing sliding glass doors for replacement
When you plan to leave the original wooden frame entirely in place during a retrofit ordering phase, you must focus specifically on the outside dimension of the old metal or vinyl track. Accurate sliding glass door measurements for a retrofit installation require extreme precision and attention to detail. The new replacement unit must slide perfectly into the original weather barrier footprint without disturbing the existing exterior siding, the original house wrap, or the interior drywall finish.
Measure the old unit from the extreme outside edge of the left frame directly to the extreme outside edge of the right frame. Do not measure the moving glass sashes themselves, as this will result in a uselessly small number that will not fit the opening. Retrofit sizing requires you to deduct exactly one quarter inch from both the total horizontal and the total vertical span of your existing frame. This tiny deduction provides just enough wiggle room for the professional installation crew to apply a thick, continuous bead of high grade polyurethane exterior caulking around the entire perimeter, ensuring a watertight lifetime seal against heavy rain.
Standard patio door sizes
Regional building practices determine local stock availability. Choosing universally accepted measurements lowers your project costs and prevents long manufacturing delays.
Typical residential panels fall into these common dimensions:
- 80″ tall for standard entryways
- 96″ tall for upscale homes (requires reinforced vinyl and heavy duty rollers)
- 60, 72, or 96 inch horizontal widths
If your entryway features an unusual measurement like 82 inches, you face two choices. You can order a premium custom frame or hire a contractor to rebuild your load bearing wall studs. Altering structural walls requires municipal permits and expensive drywall patching.
Local climate also dictates manufacturing standards. Pacific Northwest entryways require advanced antimicrobial weather stripping and deep track drainage systems. Standard products built for dry climates fail quickly under relentless regional rainstorms.
